Clarity BoardView – Commercial GOB LED Series

Commercial Indoor LED Display

Clarity BoardView – Commercial GOB LED Series

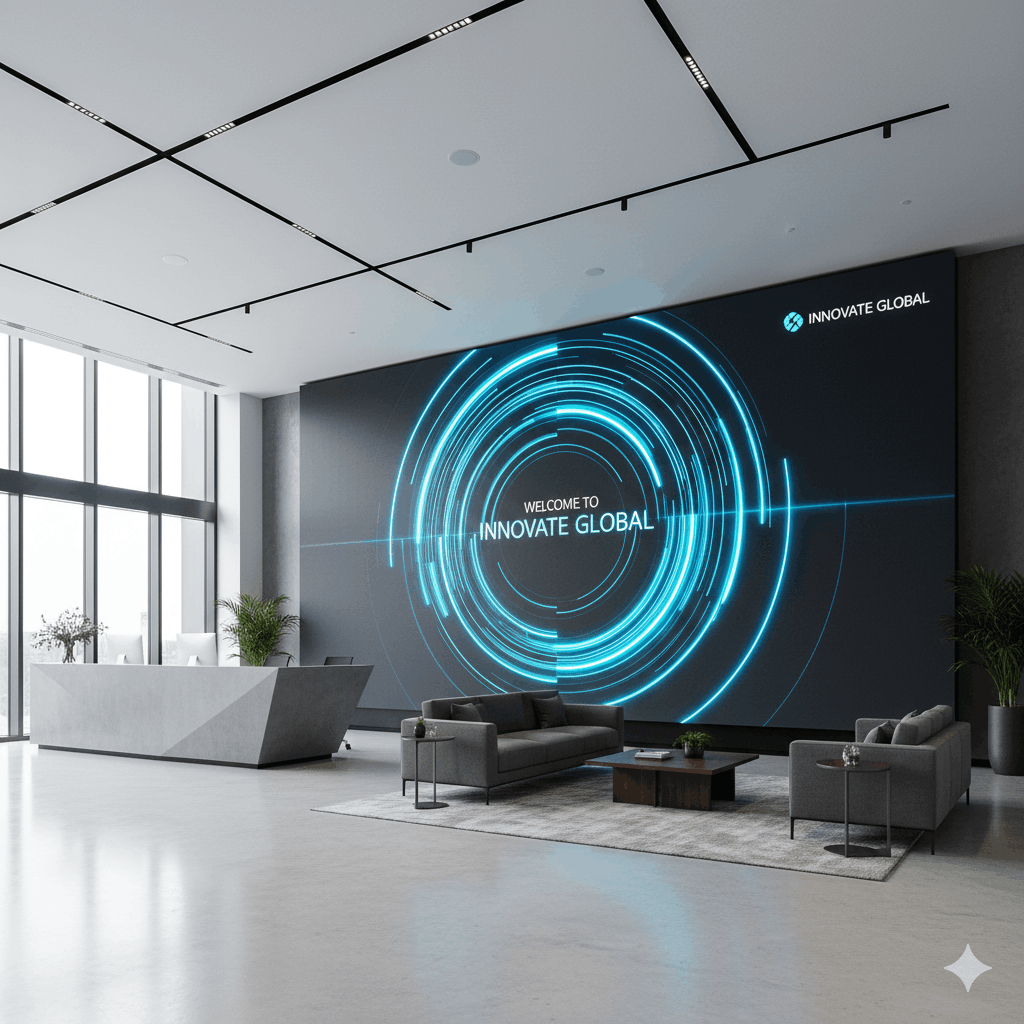

Reliable Protection. Crystal-Clear Performance. The Clarity BoardView Series combines advanced Glue-on-Board (GOB) technology with precision pixel pitch options to deliver durable, high-quality indoor LED visuals. Designed for commercial environments such as control rooms, meeting spaces, and corporate displays, it ensures long-lasting clarity and seamless viewing.

Clarity BoardView GOB
Glue-on-Board (GOB) Surface Protection
Ultra-Fine Pitch Options (P1.25, P1.538, P1.86, P2, P2.5, P3.076, P4)
High Contrast Ratio (7000:1)
Wide Viewing Angle (H160° / V160°)
Ultra High Refresh Rate (≥3840Hz)
Full Front Maintenance & Easy Installation

Product Features

Key Highlights

GOB Protection

Resin encapsulation ensures strong resistance against impact, dust, moisture, and handling damage.

Ultra-Fine Pitch

Available in P1.25, P1.538, P1.86, P2, P2.5, P3.076, and P4 for sharp, close-range visual clarity.

Diecast Aluminum Cabinet

Lightweight and thin design for quick, efficient installation with superior structural strength.

Full Front Maintenance

All modules, power, and components are front-serviceable, simplifying both installation and upkeep.

Wide Viewing Angle

H160° / V160° viewing range ensures uniform brightness and color consistency from any angle.

Ultra High Refresh Rate

Refresh rate of ≥3840Hz delivers smooth, flicker-free motion ideal for broadcast and monitoring setups.

Excellent Heat Dissipation

Optimized cabinet structure enhances thermal management for better stability and long lifespan.

High Contrast Ratio

7000:1 contrast ratio for deep blacks, vivid colors, and superior visual depth.

IP55 with GOB Technology

Enhanced protection against water, dust, and moisture due to sealed GOB surface treatment.

Waterproof & Dust-Proof

Engineered for durability with moisture-proof and dust-resistant construction.

Technical Specifications

Technical Parameters P1.25 P1.538 P1.86 P2.0 P2.5 P3.076 P4.0
Pixel Pitch 1.25mm 1.538mm 1.86mm 2mm 2.5mm 3.076mm 4mm
Pixel Configuration SMD1010 GOB SMD1010 GOB SMD1515 GOB SMD1515 GOB SMD2020 GOB SMD2020 GOB SMD2020 GOB
Module Resolution 256 × 128 208 × 104 172 × 86 160 × 80 128 × 64 104 × 52 80 × 40
Pixel Density (px/㎡) 640000 dots/㎡ 422753 dots/㎡ 289050 dots/㎡ 250000 dots/㎡ 160000 dots/㎡ 105688 dots/㎡ 10000 dots/㎡
Module Size 320mm × 160mm 320mm × 160mm 320mm × 160mm 320mm × 160mm 320mm × 160mm 320mm × 160mm 320mm × 160mm
No. of Module / Cabinet 2 × 3 2 × 3 2 × 3 2 × 3 2 × 3 2 × 3 2 × 3
Cabinet Size 640 × 480mm 640 × 480mm 640 × 480mm 640 × 480mm 640 × 480mm 640 × 480mm 640 × 480mm
Cabinet Area (㎡) 0.3072 0.3072 0.3072 0.3072 0.3072 0.3072 0.3072
Cabinet Resolution (px) 512 × 384 416 × 312 344 × 258 320 × 240 256 × 192 208 × 156 160 × 120
Avg Power Consumption (W/㎡) 300W 300W 300W 300W 300W 300W 300W
Max Power Consumption (W/㎡) 650W 650W 650W 650W 650W 650W 650W
Cabinet Material Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast
Cabinet Weight 6.5kg 6.5kg 6.5kg 6.5kg 6.5kg 6.5kg 6.5kg
Viewing Angle 160°/160° 160°/160° 160°/160° 160°/160° 160°/160° 160°/160° 160°/160°
Viewing Distance 1–50m 1.5–60m 1.5–60m 2–80m 2–80m 3–100m 4–120m
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Color Processing 16bit 16bit 16bit 14–16bit 14–16bit 14–16bit 14–16bit
Color Temperature 5000–10000 Adjustable 5000–10000 Adjustable 5000–10000 Adjustable 5000–10000 Adjustable 5000–10000 Adjustable 5000–10000 Adjustable 5000–10000 Adjustable
Working Voltage AC100–240V 50–60Hz AC100–240V 50–60Hz AC100–240V 50–60Hz AC100–240V 50–60Hz AC100–240V 50–60Hz AC100–240V 50–60Hz AC100–240V 50–60Hz
Brightness 600–800 Nits 600–800 Nits 600–800 Nits 600–1000 Nits 600–1000 Nits 600–1000 Nits 600–1000 Nits
Contrast Ratio 7000:1 7000:1 7000:1 7000:1 7000:1 7000:1 7000:1
Lifetime ≥100,000 hours ≥100,000 hours ≥100,000 hours ≥100,000 hours ≥100,000 hours ≥100,000 hours ≥100,000 hours
Working Temperature -20℃~60℃ -20℃~60℃ -20℃~60℃ -20℃~60℃ -20℃~60℃ -20℃~60℃ -20℃~60℃
Working Humidity 60%~90%RH 60%~90%RH 60%~90%RH 60%~90%RH 60%~90%RH 60%~90%RH 60%~90%RH
Maintenance Front Front Front Front Front Front Front
IP Rating IP5X with GOB IP5X with GOB IP5X with GOB IP5X with GOB IP5X with GOB IP5X with GOB IP5X with GOB
Certification CE, FCC, ROHS, EMC, LVD, BIS
